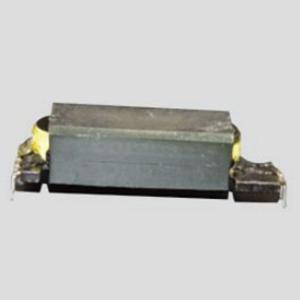

Saturation Current Magnetic Energy Storage Equipment Designed with Low DC Resistance Supporting Energy Transfer and Power Improvement
Inductors and chokes are essential electromagnetic coil elements widely used in various electronic circuits and systems. These components primarily serve as inductive reactance elements, providing impedance to alternating current while allowing direct current to pass through with minimal resistance. Inductors and chokes come in two main types based on their shielding: shielded and unshielded. Shielded inductors are designed to minimize electromagnetic interference (EMI) by containing the magnetic field within the component, making them ideal for high-frequency applications and sensitive electronic environments. Unshielded inductors, on the other hand, are typically used in applications where EMI is less of a concern or where cost considerations are paramount.
The core material used in inductors and chokes plays a crucial role in their performance characteristics. Common core materials include ferrite and iron powder, each offering distinct advantages. Ferrite cores are known for their high magnetic permeability and low electrical conductivity, which helps reduce eddy current losses and improves efficiency at higher frequencies. Iron powder cores, meanwhile, provide better saturation characteristics and are often chosen for power applications where higher current handling is necessary. The choice of core material directly impacts the quality factor (Q) of the inductor, which is the ratio of reactance to resistance at a given frequency. A higher Q indicates lower energy loss and greater efficiency in the inductive reactance element.
One of the critical electrical parameters of inductors and wire wound chokes is the saturation current, which is the current level at which the inductance value drops significantly. This parameter is vital because exceeding the saturation current can lead to a dramatic reduction in inductance, adversely affecting circuit performance. In applications such as energy storage in power supplies or filtering in signal processing, it is essential to select an inductor with an appropriate saturation current rating to ensure reliable operation under varying load conditions.
Inductors and chokes are commonly employed in a range of applications. Filtering is one of the most typical uses, where these inductive reactance elements block high-frequency noise while allowing desired signals to pass. This makes them indispensable in power supply circuits, audio equipment, and communication systems. Energy storage is another fundamental application, particularly in switch-mode power supplies and DC-DC converters, where inductors store and release energy to maintain a stable output voltage. Additionally, chokes are extensively used for electromagnetic interference (EMI) suppression, helping to reduce unwanted noise emissions and improve overall electromagnetic compatibility (EMC) of electronic devices.
The wire wound choke is a specific type of inductor characterized by its construction, where a wire is wound around a magnetic core. This design offers high inductance values and excellent current handling capabilities, making wire wound chokes suitable for power applications that require robust performance under high current conditions. Their inductive reactance element nature ensures efficient filtering and energy storage, especially in environments prone to significant EMI challenges.
In summary, inductors and chokes are versatile electromagnetic coil elements essential for managing current and voltage in electronic circuits. Whether shielded or unshielded, with ferrite or iron powder cores, these components provide critical functions such as filtering, energy storage, and EMI suppression. Understanding key attributes like saturation current and quality factor helps engineers select the right inductive reactance elements for their specific applications, ensuring optimal performance and reliability in a wide array of electronic systems.
Inductors and chokes are essential components widely used across various electronic applications due to their unique property as an inductive reactance element. They play a crucial role in filtering, energy storage, and electromagnetic interference (EMI) suppression, making them indispensable in both consumer and industrial electronics. Fixed inductors, variable inductors, RF chokes, and common mode chokes are among the most common types, each serving specific functions depending on the circuit requirements.
In filtering applications, inductors act as inductive reactance elements that block or attenuate high-frequency signals while allowing low-frequency signals to pass. This makes them vital in power supply circuits, audio equipment, and communication devices where signal integrity is paramount. RF chokes, in particular, are designed to block radio frequency interference, ensuring that unwanted noise does not disrupt the proper functioning of sensitive electronics.
Energy storage is another significant application of inductors. By storing magnetic energy within their coils, inductors help maintain steady current flow in power converters, DC-DC regulators, and switching power supplies. This magnetic energy storage capability enables efficient energy transfer and smooth voltage regulation, improving overall system performance and reliability.
EMI suppression is critical in modern electronic systems, where unwanted electromagnetic signals can cause malfunctions or degrade performance. Common mode chokes are specially designed inductors that suppress common mode noise by providing high impedance to noise currents while allowing differential currents to pass through. This shielding effect can be enhanced by using shielded inductors, which minimize electromagnetic interference emissions and susceptibility.
The quality factor (Q) of an inductor, defined as the ratio of reactance to resistance at a given frequency, is a key parameter that influences its efficiency and performance. High-Q inductors are preferred in applications requiring minimal energy loss and high selectivity, such as RF circuits and precision filters. Conversely, lower-Q inductors may be suitable for power applications where robustness is prioritized over selectivity.
Inductors and chokes are designed to operate reliably across a wide temperature range, typically from -40°C to +125°C or higher, depending on the material and construction. This broad operating temperature range ensures stable performance in harsh environments, including automotive, industrial, and aerospace applications.
In summary, inductors and chokes, as vital inductive reactance elements, are widely employed for filtering, magnetic energy storage, and EMI suppression. Their various types, shielding options, quality factors, and robust temperature ratings enable them to meet the diverse demands of modern electronic systems efficiently and reliably.
Our Product Customization Services for inductors and chokes are designed to meet your specific requirements, ensuring optimal performance in your applications. We offer customization options that cover a wide Operating Temperature Range, from minimum to maximum operating temperatures (°C), allowing our high frequency inductors and power supply choke coils to function reliably under various environmental conditions.
The Current Rating of our inductors can be tailored to handle the maximum current in amperes (A) necessary for your circuit, ensuring efficient magnetic energy storage and minimal power loss. Depending on your needs, we provide both shielded and unshielded configurations to minimize electromagnetic interference and enhance device performance.
Our inductors and chokes are available with various Core Materials, including ferrite and iron powder, selected to optimize magnetic properties and suit applications such as filtering, energy storage, and EMI suppression. Whether you require a high frequency inductor for signal integrity or a power supply choke coil for stable power delivery, our customization services guarantee components designed specifically for your use case.
Our inductors and chokes are carefully packaged to ensure maximum protection during transit. Each component is individually sealed in anti-static bags to prevent electrostatic discharge damage. They are then securely placed in cushioned compartments within sturdy cartons to avoid any physical impact or vibration.
For bulk orders, products are organized in labeled trays or reels, depending on the type and size of the inductor or choke, to facilitate easy handling and inventory management.
All packages are clearly marked with product information, handling instructions, and shipping labels to ensure accurate and safe delivery. We use reliable shipping services with tracking options to provide timely and secure shipment to our customers worldwide.
Special packaging requests can be accommodated upon customer inquiry to meet specific requirements or industry standards.
Q1: What is the primary function of inductors and chokes in electronic circuits?
A1: Inductors and chokes are used to store energy in a magnetic field when electrical current passes through them. They help filter signals, block high-frequency noise, and manage current flow in power supplies and RF applications.
Q2: What materials are commonly used to manufacture inductors and chokes?
A2: Inductors and chokes are typically made using copper wire wound around a core material, which can be ferrite, iron powder, or air. The choice of core material affects the inductance, frequency response, and efficiency.
Q3: How do I choose the right inductance value for my application?
A3: The inductance value depends on the specific circuit requirements, such as the desired frequency response and current rating. It is important to consult the circuit design specifications or datasheets to select an inductor with the appropriate inductance and current capacity.
Q4: What are the common applications of chokes in electronic devices?
A4: Chokes are widely used in power supplies to reduce electromagnetic interference (EMI), in audio equipment to filter noise, and in RF circuits to block unwanted frequencies, ensuring stable and clean signal transmission.
Q5: Can inductors and chokes handle high current loads?
A5: Yes, inductors and chokes are available in various sizes and designs to handle different current ratings. It is crucial to select components rated for the maximum current expected in your application to prevent overheating and ensure reliable operation.
